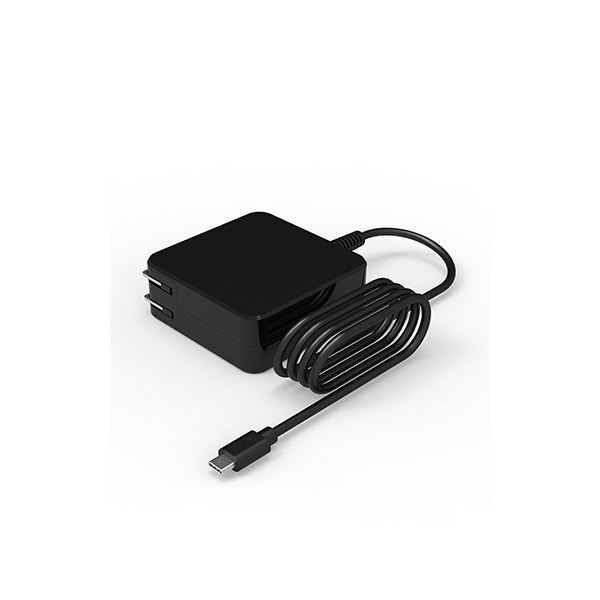

130W USB C Laptop Charger Universal GaN III Power Supply Adapter Model No.: ZPSU-PD130W-1
130W USB C Laptop Charger, Universal GaN III Power Supply Adapter, Replacement Foldable Fast Charger PD3.0 for MacBook Pro/Ai
Special Features:
Type-C GaN Tech 130W Desktop Power Adapter/PSU
ZPSU-PD130W-1 is a PD power supply, 100Vac-240Vac wide voltage input, 20.0V/6.5A output, total rated output power 130.0W Max, and the power supply has short circuit protection,over current protection and overvoltage protection.
Main Features
(1) Max Power: 130W
(2) Materials: PC Fireproof Material, PC+ABS, GaN
(3) AC Input Voltage and Frequency
Rated Input Voltage: AC100/240V
Reliable Input Voltage: AC90-264V
Rated Input Frequency: 50/60Hz
Reliable Input Frequency: 47-63Hz
(4) Maximum AC Current
Input rated voltage, ouput rated load, input AC Current 2.5Amps Maximum.
(5) Input Inrush Current
Input 220Vac 50Hz, ouput rated load (cold start) inrush Current 60Amps peak.
(6) No-load Loss Power
Input 115/230Vac, output no load. Maximum loss power 0.21 Watts.
Type C GaN Tech PD130W Desktop Power Adapter/PSU
System Requirement
PC, Laptops
Protection Function
Over Voltage Protection
Over voltage protection position 24V Max
Current Protection
The power adapter can be automatically protected during the overcurrent condition, it can be automatically restored to be normal when the overcurrent condition removed, over-current output current 13.0A Max
Circuit Protection
Shorting of output will not cause power supply to damage, or any safety hazard. The power supply shall resume normal operation after the short is removed.
Input Protection
The power supply has a current fuse to protect itself.
