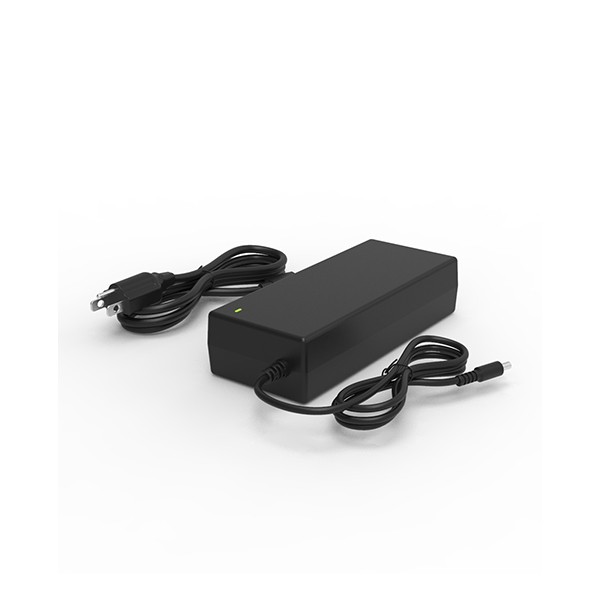

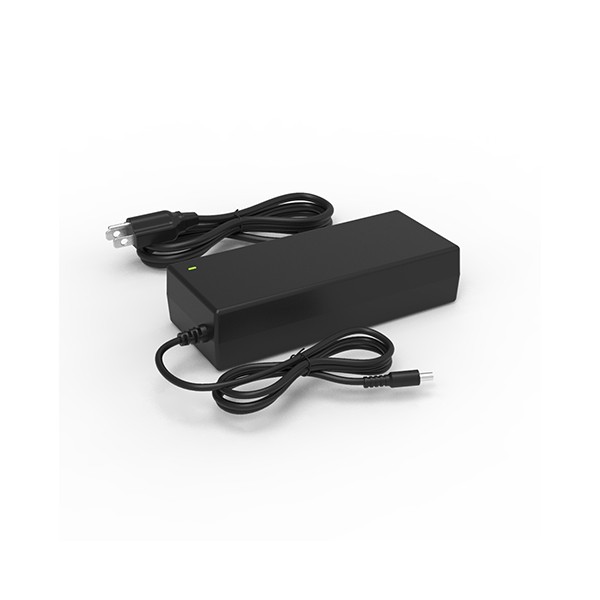

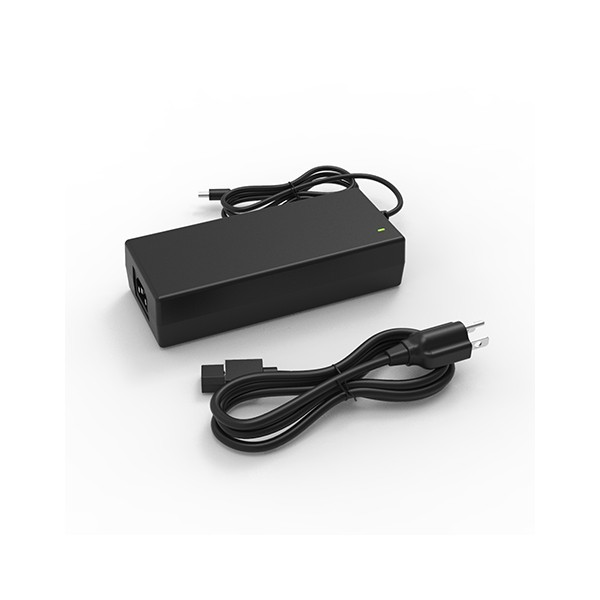

160W Power Supply Unit for Laptop Model No.: ZPSU-160W-1

160W 20V/8A AC DC Desktop Power Adapter

• Input Electrical Requirements

• 1. Normal Input Voltage : 100-240Vac

• 2. Input Voltage Range : 90-264Vac

• 3. Input Frequency : 50/60Hz

• 4. AC Input Current : 3.0A

• 5. Non-Load Consumption Power: ＜0.21W

• Output Electrical Requirements

• 1. Normal Output Voltage : 20.0Vdc

• 2. Output Voltage Range : 19Vdc to 21Vdc

• 3. Maximum Output Current: 8A

• 4. Line Regulation : ±1% Max.

• 5. Load Regulation : ±5% Max.

• 6. Ripple and Noise Test Condition : <240 mVp-p

• 7. Average active mode efficiency : ＞88%

• 8. Output Short Circuit Protection : Self Adjustment

• 9.  Over Current Protection :≤18.0A (CC Mode)

• Environment Requirements

• 1. operating temperature : -20 ~ +40°C

• 2. Storage Temperature : -10 ~ +70°C

• 3. Operating Humidity : 10 ~ 90 %RH

• 4. Storage Humidity : 5 ~ 90 %RH

•


Reliability
•1. Hi-Pot Testing Voltage : I/P to O/P : 3.0 (60Sec.) KVac
•2. Safety Standard : IEC62368-1:2014
•3. EMI Standard : EN55022B; FCC Class B
Mechanical Characteristics
•1. Case Size : (L) 172mm * (W) 72mm*(H)40mm
•2. AC Connector: Desktop
•3. DC Cable: 1185 16# 1.2M
•4. DC connector/ DC:5.5*2.5*9M
