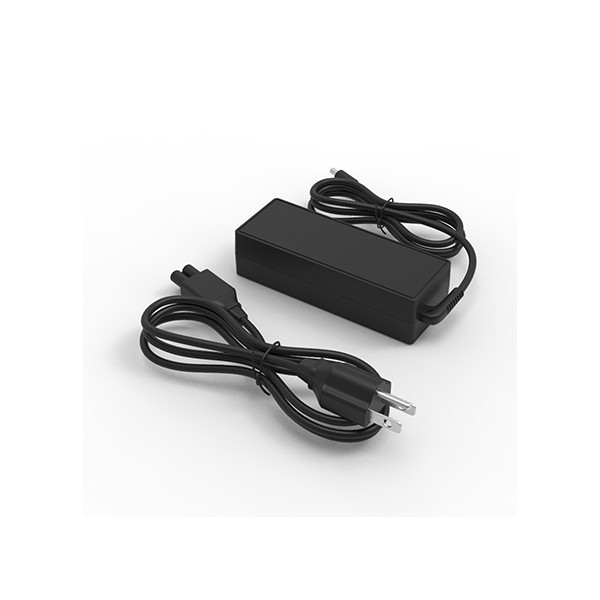

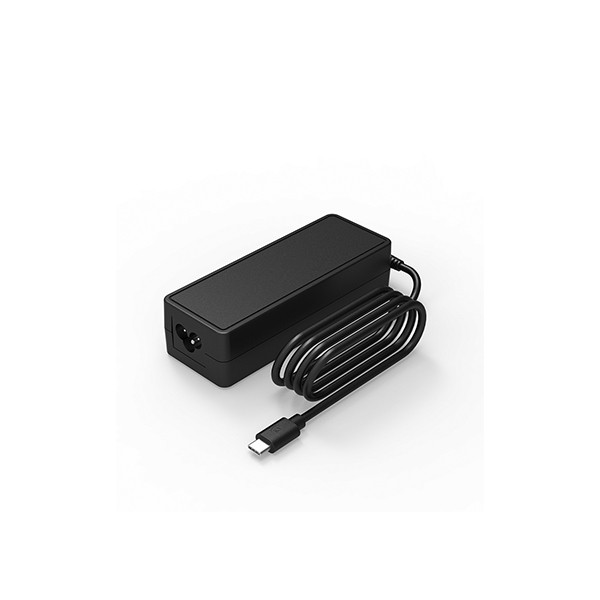

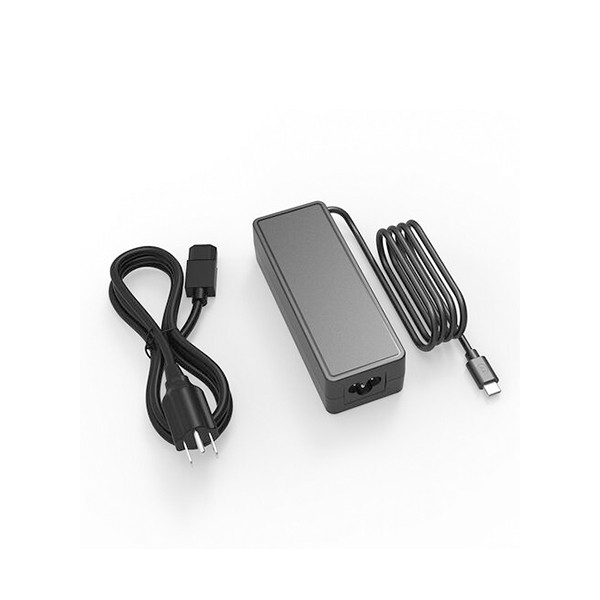

100W GaN charger Tech Desk-top PSU Power Adapter Model No.:ZPSU-PD100W-1

100W GaN charger Tech Desk-top Power Supply Unit 100W PSU Power Adapter

G1004C is an AC / DC power supply, 100Vac-240V ac wide voltage input, 20.0V/6.5A output, total rated output power 100.0W Max, and the power supply has short circuit protection,over current protection and overvoltage protection.

FEATURES

• - Max Power: 100W

• - Materials: PC Fireproof Material, PC+ABS, GaN

• - AC Input Voltage and Frequency

• - Rated Input Voltage: AC100/240V

• - Reliable Input Voltage: AC90-264V

• - Rated Input Frequency: 50/60Hz

• - Reliable Input Frequency: 47-63Hz

• - Maximum AC Current

• - Input rated voltage, ouput rated load, input AC Current 2.5Amps Maximum.

• - Input Inrush Current

• - Input 220Vac 50Hz, ouput rated load (cold start) inrush Current 60Amps peak.

• - No-load Loss Power

• - Input 115/230Vac, output no load. Maximum loss power 0.21 Watts

• CE/FCC/Rohs/BSCI complianced.
