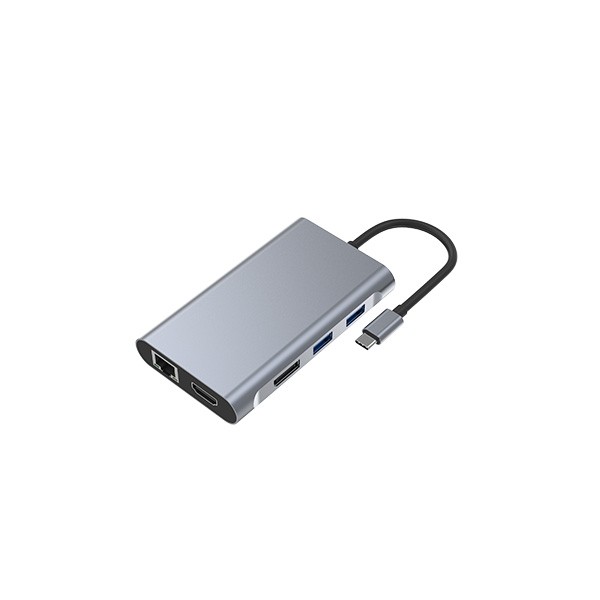

USB 3.1 Type-C Docking station MST 8 in 1 Model No.: ULC13D01

Feature

• Support USB-C input, USB3.0 Output

• Support HDMI Female, Display port Female, USB-C Female, USB 3.0 Female, USB2.0 Female + Gigabit Ethernet, USB-C interface

• Support Type C Power Delivery 3.0 (max 100W power output)

• Support HDMI resolution up to 3840X2160@30Hz

• Support Display port up to 3840X2160@60Hz

• Support Display port and HDMI simultaneously output

• Support MST mode (Multi-Stream Transmit)

• Support 10/100/1000Mbps bandwidth

• USB-C female charging port for Macbook or Google new Chromebook Pixel and other USB-C supported devices

• Multiple USB-C interfaces support plug and play, hot swap

Specifications

Input USB-C Male x1, USB-C Female x1 for charging
Output: HDMI Female x1, Display port Female x1, USB3.0 Female x2, USB2.0 Female x 2, RJ45 X1

Environmental

Operating Temperature 0 ℃ to +45℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (no condensation)

Power Supply

USB3.0 Port UP to 5W (5V/1A)
USB-C Female Port Up to 100W (20V/5A)
