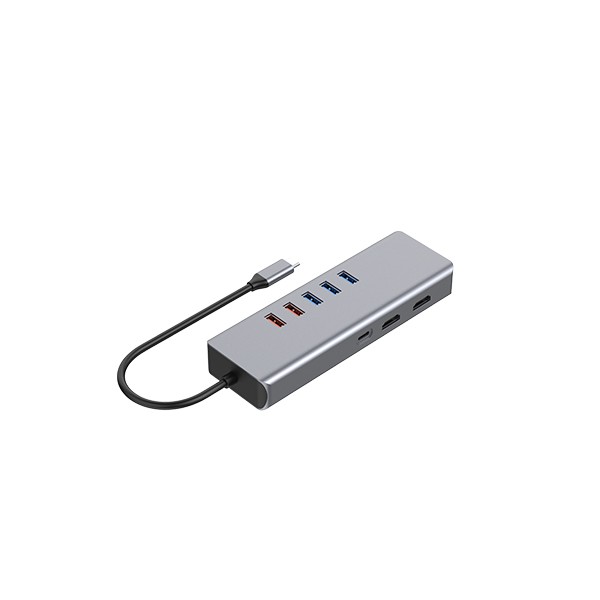

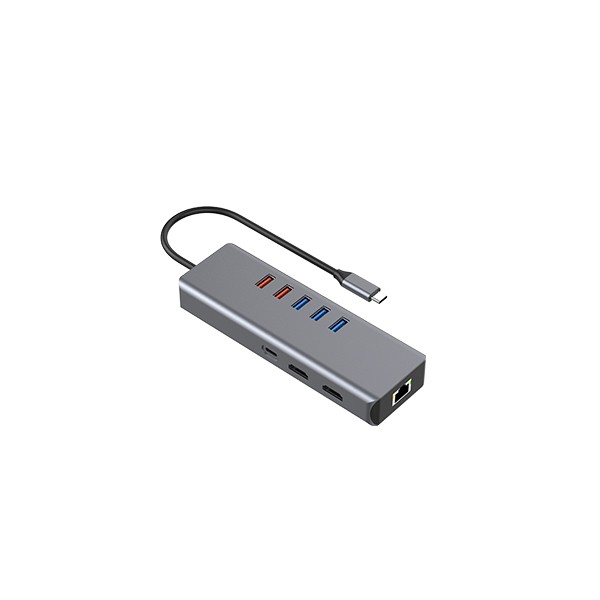

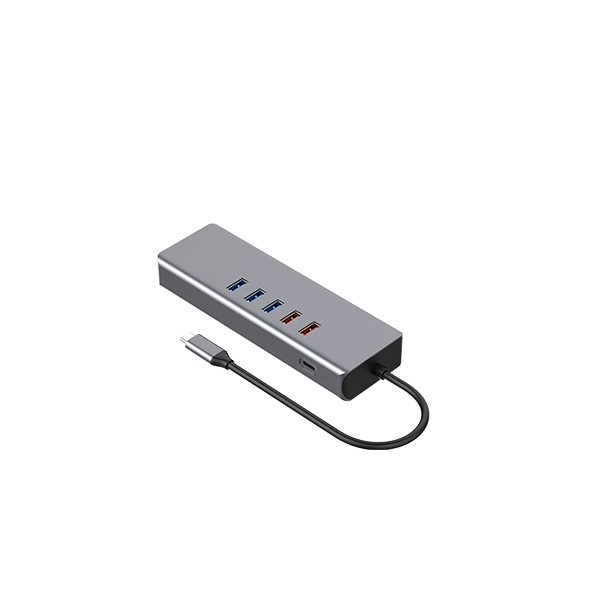

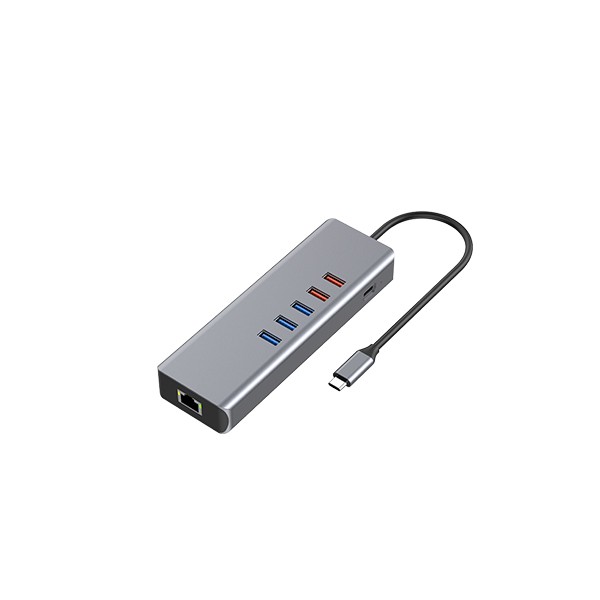

Type C Gen2 PD3.1 docking station Model No.: ULC13K70

USB C 3.1 C 10 in 1 docking station

Type C Gen2 10Gbps +USB3.1 A Gen2 10Gbps + USB3.0 5Gbps + Dual HDMI+ GIGA LAN w/ PD140W

FEATURES

• Support USB-C Gen2 input

• Support HDMI Female, USB-C Gen2 Female, USB 3.1 A Gen2 Female, USB3.0 Female, Gigabit Ethernet,USB-C PD3.1 female interface

• USB-C Gen2 female port: transfer speed up to 10Gbps

• USB3.1 A Gen2 female port: transfer speed up to 10Gbps

• USB3.0 female port: transfer speed up to 5Gbps

• Every USB A and Type C port offers 5V2A Max. (BC1.2 protocol)/ port power for external device charging

• Support HDMI 1 resolution up to 8K@30Hz

• Support HDMI2 resolution up to 4K@60Hz

• Support Dual HDMI simultaneously output (Upto 4K@30Hz)

• Support MST mode (Multi-Stream Transmit)

• Support 10/100/1000Mbps bandwidth Ethernet LAN

• USB-C female charging port PD3.1 (max 28V5A auto-adjustment) for Macbook or Google new Chromebook Pixel and other USB-C supported devices

• USB-C female PD port also supports 480Mbps data transfer

• Multiple USB-C interfaces support plug and play, hot swap.

SPECIFICATIONS

Input USB-C Gen2 Male x1, USB-C Female x1 for PD3.1 charging
Output: HDMI Female x2, Type C Gen 2 x1, USB3.1 A Gen2x 2, USB3.0 Female x3, RJ45 X1

Environmental

Operating Temperature 0 ℃ to +48℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (no condensation)

Power Output

USB3.0 Port UP to 10W (5V/2A)
USB-C Female PD Port Up to 140W (28V/5A)
