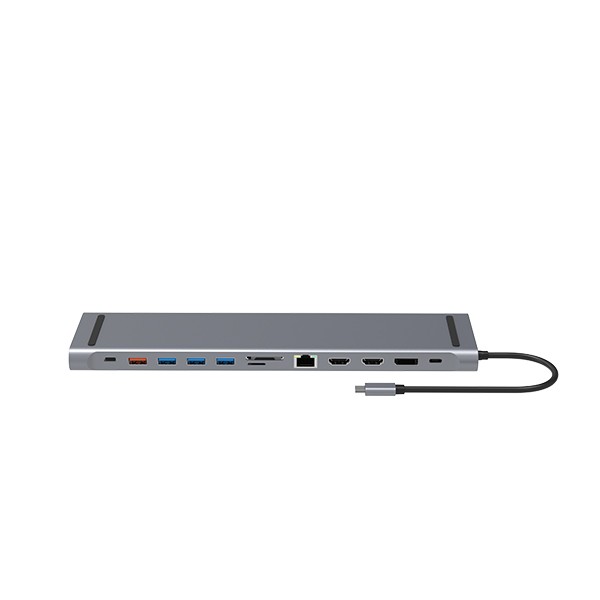

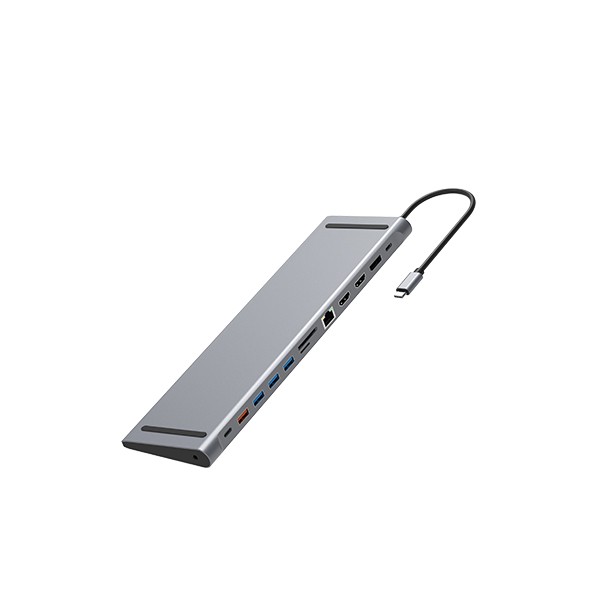

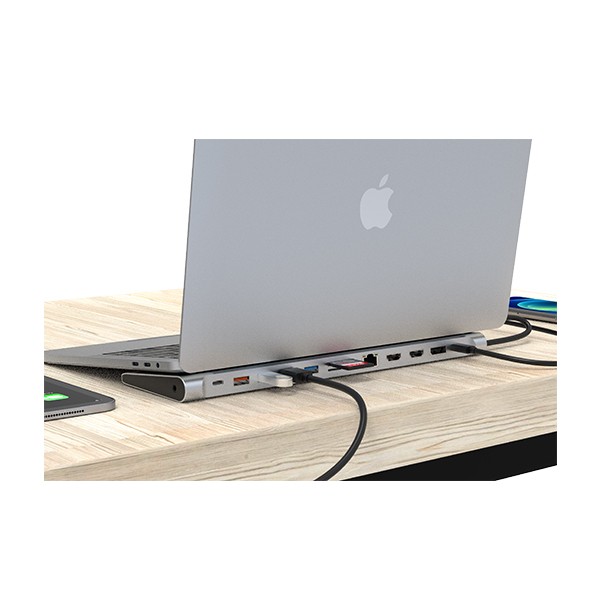

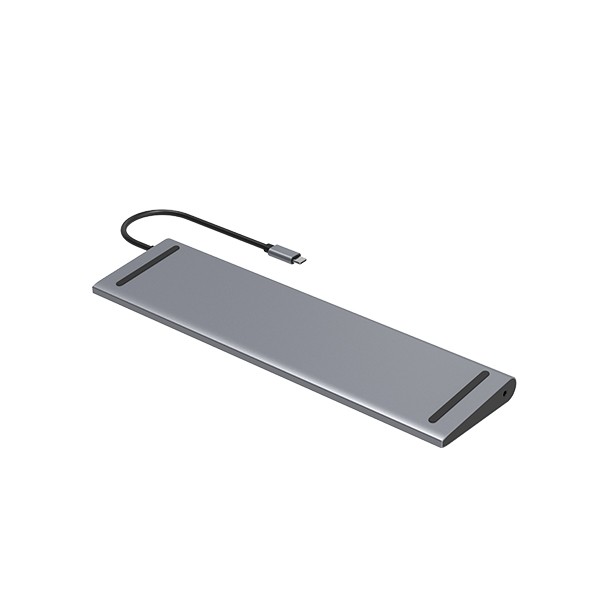

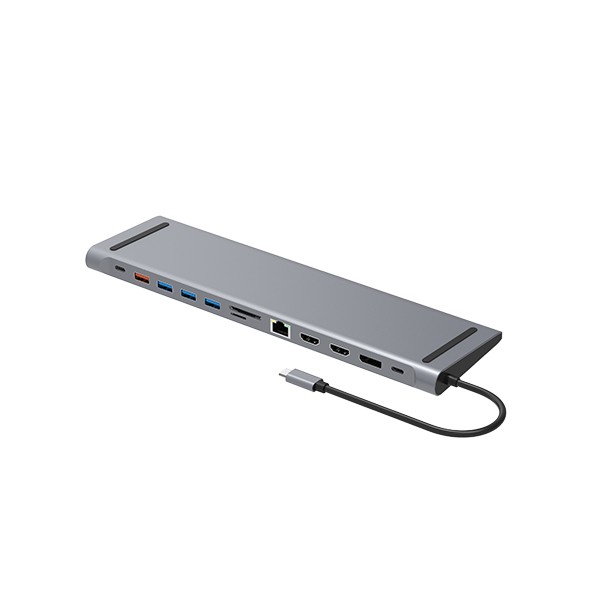

Type C Gen2 Multi-media PD3.0 docking station MST Model No. : ULC13A176

USB C 13 in 1 docking station

Type C Gen2 *1 + USB3.2 Gen2 A + USB3.0 X 3 + 2*HDMI + Display port + GIGA LAN + SD/TF Card Reader + Audio/MIC n TYPE-C PD3.0 100W

Feature

• Laptop docking station: available operated up side sown as per the type C position of Laptop.

• Cooling pad design to enhance the efficiency of Laptop heat dissipation.

• Support USB-C input upstream.

• Support HDMI Female*2, Display port, USB-C Female *2 , USB 3.0 Female*3, USB3.2 Gen2 A female,Gigabit Ethernet, Stereo, SD Card, Micro SD Card, Audio, Microphone

• Support USB3.0 A female port 5Gbps Data Transfer Speed.

• Support Type C Gen2 female port 10Gbps Data Transfer Speed.

• Support USB3.2 Gen2 A female port 10Gbps Data Transfer Speed.

• Support HDMI / Display port simultaneously output.

• Support MST mode (Multi-stream Transmit) in Windows OS.

• Support 10/100/1000Mbps bandwidth Ethernet LAN.

• Stereo port supports both microphone and headphone function.

• Support to access memory.

• USB-C female charging port for Macbook or Google new Chromebook Pixel and other USB-C supported devices.

• Multiple USB-C interfaces support plug and play, hot swap.

• Support SD/SDHC/SDXC up to 2TB capacity.

• Support Secure Digital v3.0 UHS-I (Reading speed max 70Mbps, Writing speed max 90Mbps)

• Support MultiMediaCard (MMC) specification.

• Rubber mat anti-slip.

Specifications

Input: USB-C Male x1/ USB Type C PD x 1
Output:
HDMI Female x2, Display port Female x 1
USB 3.0 A Female port x3, Type C Gen2 Female x1, USB3.2 Gen2 A female x1 RJ45 Giga LAN X1,
SD card slot x1, Micro SD card slot x1, Audio+Mic port x 1

Environmental

Operating Temperature 0 ℃ to +45℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +70℃
Storage Humidity 5% to 90% RH (no condensation)
