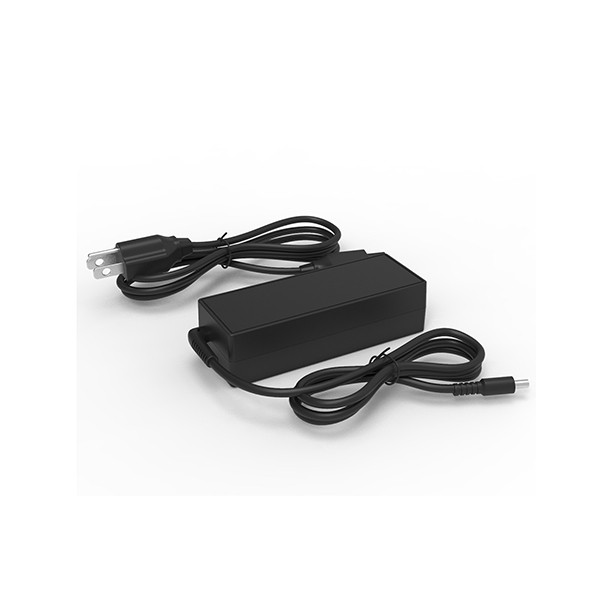

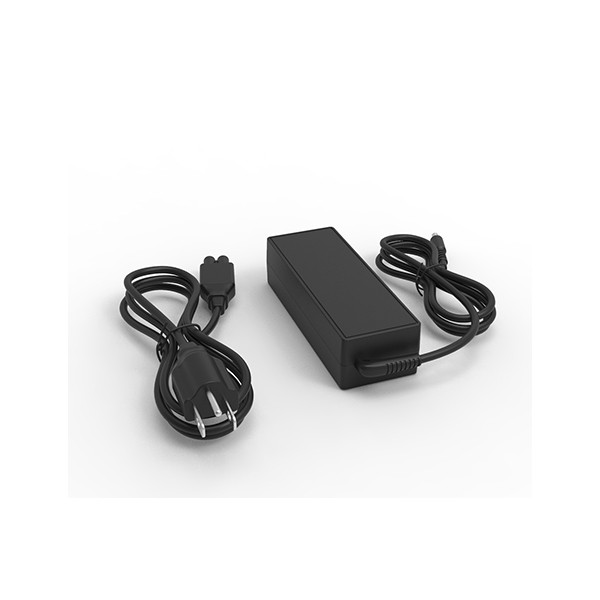

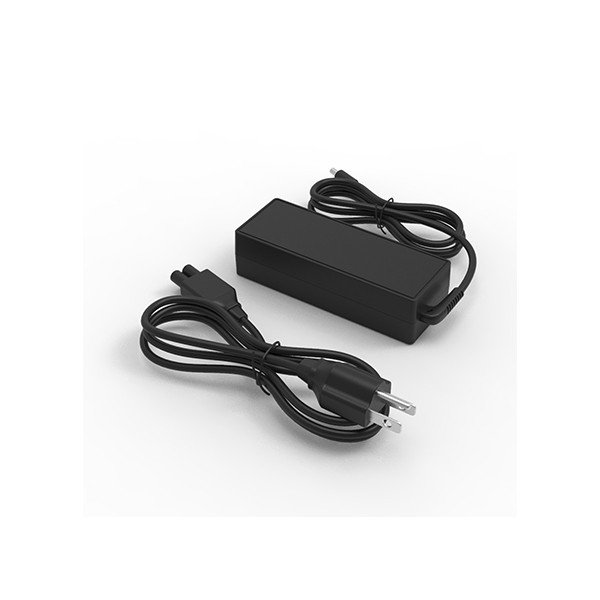

180W AC DC 20V/9A Power Adapter for PC laptop Model No.: ZPSU-180-1W

180W 20V/9A AC DC Desktop Power Adapter

• Input Electrical Requirements

• 1. Normal Input Voltage : 100-240Vac

• 2. Input Voltage Range : 90-264Vac

• 3. Input Frequency : 50/60Hz

• 4. AC Input Current : 3.0A

• 5. Non-Load Consumption Power: ＜0.21W

• Output Electrical Requirements

• 1. Normal Output Voltage : 20.0Vdc

• 2. Output Voltage Range : 19Vdc to 21Vdc

• 3. Maximum Output Current: 9A

• 4. Line Regulation : ±1% Max.

• 5. Load Regulation : ±5% Max.

• 6. Ripple and Noise Test Condition : <240 mVp-p

• 7. Average active mode efficiency : ＞88%

• 8. Output Short Circuit Protection : Self Adjustment

• 9.  Over Current Protection :≤18.0A (CC Mode)

• Environment Requirements

• 1. operating temperature : -20 ~ +40°C

• 2. Storage Temperature : -10 ~ +70°C

• 3. Operating Humidity : 10 ~ 90 %RH

• 4. Storage Humidity : 5 ~ 90 %RH
